How Does A GPS Receiver Work?
-
01
Your receiver reads at least four satellites orbiting roughly 12,000 miles overhead.
-
02
Timing is what gets measured: Signals travel at light speed, so arrival time becomes range.
-
03
Trilateration overlaps those ranges until only one point on Earth satisfies all of them.
-
04
The fourth satellite fixes the clock: Your receiver has no atomic clock, so it borrows theirs.
-
05
No cell signal needed: GPS keeps working where phones lose every bar.
A GPS receiver works out where it is by listening to satellites. No cell network involved, which is why it keeps working where your phone gives up.

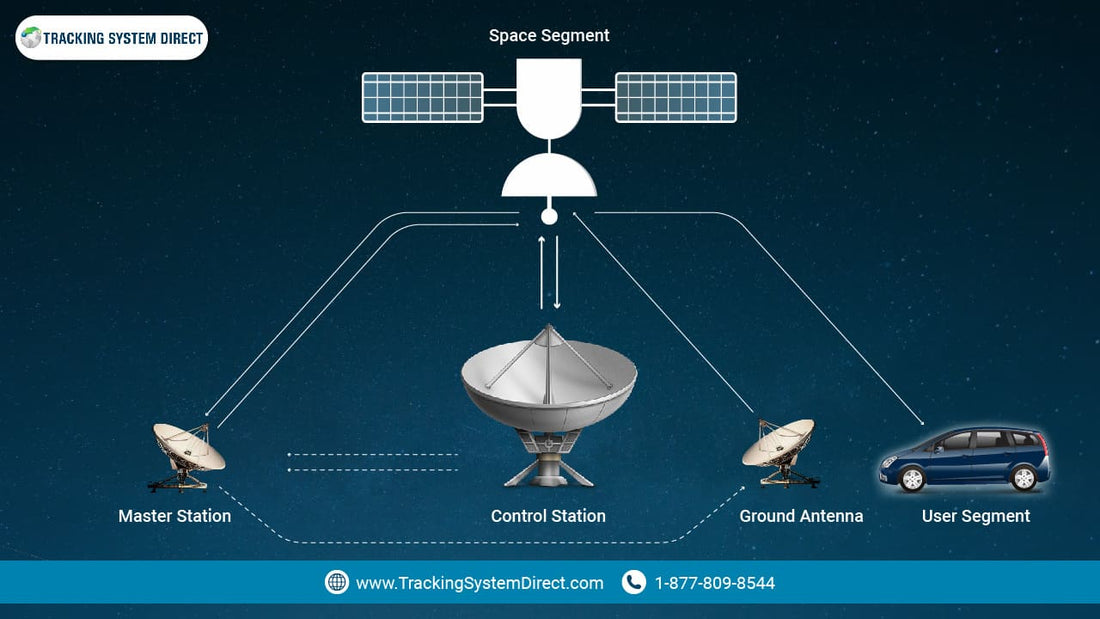

The Department of Defense built the system, and 31 satellites now orbit roughly 12,000 miles up. They are spaced so that at least four sit above you at any moment, anywhere on Earth.
What happens inside the device is three steps. Identify which satellites are visible. Time how long each signal took to arrive. Turn those timings into one location. The interactive below lets you watch the third step happen.
- What it is: The component inside a navigator or tracker that turns satellite signals into coordinates.
- How it works: Times each signal's travel, converts that to distance, then overlaps four of them.
- Why four: Three fix your position. The fourth corrects the receiver's own clock and adds altitude.
- How accurate: A phone lands within about 4.9 meters under open sky. Survey gear reaches centimeters.
- What degrades it: Buildings, tree cover, atmosphere, and poor satellite geometry overhead.
See trilateration work, live
Drag the gold dot anywhere on the map. Then step through two, three, and four satellites to see why a receiver needs each one.
With two satellites, two different points match the same pair of distances. Drag the dot and watch the gray point mirror it. That ambiguity is what a real receiver has to resolve.
- Satellite A: 0 mi
- Satellite B: 0 mi
Two satellites leave two possible answers. A third rules one out. A fourth corrects the receiver's clock and supplies altitude.
The same network, in your hand
SpaceHawk GPS Tracker
Everything on this page is what a tracker does thousands of times a day. SpaceHawk reads the same satellites and reports where your vehicle is.
$39.95 device. Plans $19.95 a month, or $9.95 on a two-year prepay.
- 3-second updates
- IP67 waterproof
- 1 year trip history
- Lifetime warranty
What a GPS Receiver Is
A GPS receiver calculates coordinates from the signals broadcast by the Global Positioning System. That is the entire job. Work out where you are, using nothing but transmissions from space.
The devices turn up in more places than most people expect. Drivers use them for turn-by-turn navigation. Hikers log trails deep in country with no cell coverage at all. Fleets use them to cut wasted mileage and fuel.
Emergency crews use GPS to reach an address quickly when minutes count. Farmers guide equipment across fields with it. Athletes use it to break down a run afterwards. Surveyors push it furthest, working with gear accurate to the centimetre.
How a Receiver Pins Down Your Location
Imagine you are lost and a stranger tells you Minneapolis is 690 miles away. That narrows nothing much, because you could be anywhere on a 690-mile circle around that city. A second stranger says Tucson is 615 miles off. Now there are two points where those circles cross. That is exactly the gray ghost point in the demo above.
A third voice says Boise is 625 miles away. Only one point on Earth satisfies all three distances, and that point turns out to be Denver.
Your receiver runs the same arithmetic, in three dimensions, with spheres instead of circles.
Why the fourth satellite
Three satellites leave two candidate points. One of them sits far off the Earth's surface and gets discarded immediately. So what is the fourth satellite actually for?
Timing. Distance is worked out from how long a signal took to arrive, and radio waves move at light speed. A clock error of one millionth of a second becomes a position error of about 300 meters.
Each satellite carries an atomic clock and timestamps every transmission to the nanosecond. Your receiver carries nothing of the sort, because an atomic clock costs more than the vehicle. The fourth satellite gives it enough information to solve for its own clock error alongside its position.
Receivers also hold an almanac of where every satellite should be. That tells them where to look next, and helps them spot a signal that does not add up. Put it together and you get a fix you can trust nearly anywhere on the planet.
Putting a receiver in a vehicle, including where to run the wiring so it stays hidden.
How Accurate Is a GPS Receiver, Really
Accuracy depends far more on the receiver than on the satellites. The published figures are widely misquoted, so it is worth separating two numbers that get mixed up constantly.
The second number is the one people garble. The government commits to a global average user range error of 2.0 meters or better. That holds 95 percent of the time. Actual performance usually beats that comfortably.
Your actual accuracy comes from the range error combined with satellite geometry and local conditions. Signal blockage, atmosphere, and the quality of the receiver chip all move the number.
High-end users do far better. Dual-frequency receivers and augmentation systems reach a few centimeters in real time, and millimeters over long observation periods. That is the gear surveyors carry, and it costs accordingly.
One more cause worth knowing. Sometimes the receiver is working perfectly and the mapping software is wrong. A missing road or a misplaced building produces an error no satellite can fix.
How Weather Affects GPS Accuracy
Weather plays a bigger role than most people assume, though rarely enough to notice while driving. Four effects account for most of it.
-
Ionospheric delay
The charged upper atmosphere slows signals, and solar activity makes the delay worse. Receivers recalculate for it continuously.
-
Tropospheric delay
Water vapor in the lowest layer slows signals further. Temperature, pressure and humidity all shift the effect.
-
Rain and snow
Heavy precipitation weakens signal strength, snow especially. Better receivers compensate by tracking more satellites at once.
-
Storms and scintillation
Thunderstorms cause signal strength to fluctuate briefly. Differential and assisted GPS smooth most of it out.
None of this makes GPS fragile. Two cases are worth a little more detail.
Heavy rain
Heavy rain weakens signal strength as it passes through the atmosphere, more so at higher frequencies. For everyday use the accuracy cost is small, usually centimeters to a meter.
Solar flares
Solar flares release charged particles that disturb the ionosphere. Errors can run to a few meters, and in rare extreme events tens of meters. Receivers may also take longer to acquire a fix during one.
If a tracker seems inaccurate, check where it is mounted before you blame the chip. Metal above the antenna costs more accuracy than weather ever will.
